Ink cups that have what it takes

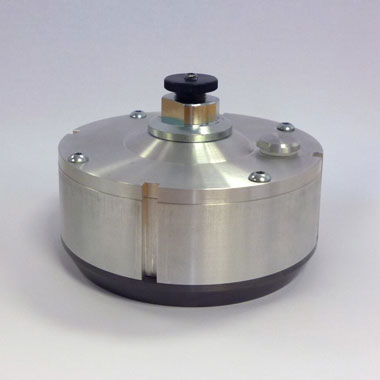

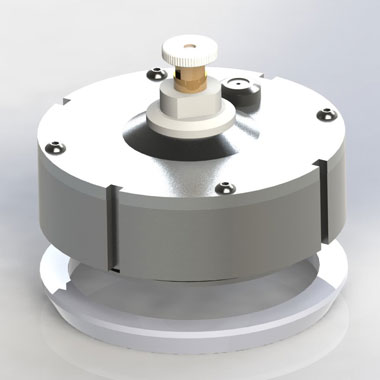

The basic body of our new generation of ink cups is composed of high-quality coated aluminium. The TAMPONCOLOR® SMART CUP has been developed in combination with a replaceable carbide doctor ring and is available in various diameters (see table below).

In contrast to similar ink cup systems, the scraper lip can be attached or detached without tools.

TC SMART CUP Farbtöpfe TC-FTS

Designed with care

Using a central holding magnet, which is continuously height-adjustable, the ink cup is held in an optimal position on the steel or plastic cliché. This also allows for colours to mix well during the printing operation.

Solvent can be dispensed via a ventilation screw, guaranteeing optimum ink viscosity throughout the entire printing process.

Alongside our steel and plastic clichés, we have a complete ink-guiding system which is designed for maximum durability, minimum wear and tear, and easy handling.

If process-related signs of wear appear on the doctor ring, it can be changed easily, leaving the TAMPONCOLOR® SMART CUP looking as good as new.

TC SMART CUP Farbtöpfe TC-FTS

Technical details

Ink cupRecommended cliché size (mm)Internal diameter (mm)Max. image diameter (mm)
TC-FTS 70160x80x10 / 180x80x107050
TC-FTS 80200x100x108060
TC-FTS 90200x100x109070
TC-FTS 100250x120x1010080
TC-FTS 110250x120x1011090
TC-FTS 130300x150x10130110
TC-FTS 150320x160x10150130
TC-FTS 170400x200x10170150

The TC-FTS complements the tried and tested ink cup range from TAMPONCOLOR® and is available in many different sizes. Please talk to us!
