Electromechanical pad printing machines are used for printing, inscribing, labelling and decorating products in one or multiple colours with a high degree of accuracy and colour saturation at high speeds. The machine is suitable for integration into high-speed production systems, for which smaller cliché sizes and lower pressing forces suffice.

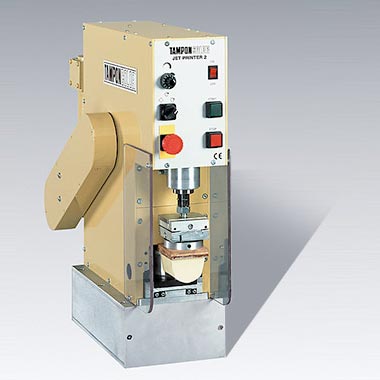

Jet Printer 2

Jet Printer 2

Our Jet Printer 2 is an electromechanically driven pad printing machine with a closed ink cup system for ink cups.

Technical specifications:

  • electromechanically driven pad printing machine
  • pressing force: max. 300 N
  • cliché size: max. 140 mm x 70 mm
  • pad movement and cliché table powered by cam disc control
  • number of cycles: max. 7200/h, variable speed
  • operating modes: set-up, single cycle, expandable for automatic operation
  • closed ink cup system, ink cup diameter max. 60 mm
  • integrated electrical control

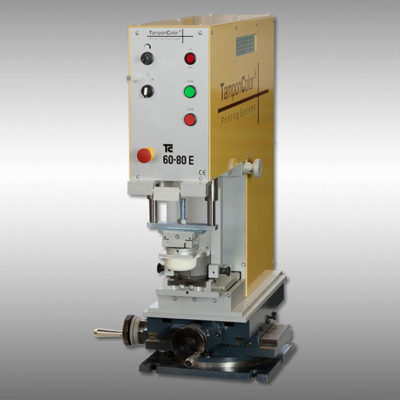

TC 60-80E

A robust pad printing machine with cam disc for stand-alone or in-line operation for print images with sizes up to approx. 60 mm diameter.

Pad printing machine TC 60-80 E

Technical specifications:

  • electromechanically driven pad printing machine
  • pad and cliché table movement via cam disc
  • pressing force approx. 300 N
  • max. no. of cycles approx. 3,000/h, variable speed
  • cliché width: max. 250 mm
  • open or closed ink cup systems
  • TAMPONCOLOR movement for smooth operation, good ink transfer
  • operating modes: jog mode, single cycle, automatic, operation by hand and foot, equipped for automation
  • power supply 220/240 V, 50/60 Hz
  • optional: sliding clichés and coding bars for changing print images

Electromechanical, pneumatic or servo-electrical?

We know which pad printing machine is best for your printing process.
