Pneumatic pad printing machines are used for printing, inscribing, labelling and decorating products in one or multiple colours with a high degree of accuracy and colour saturation at high speeds. The machines offer cliché widths of up to 650 mm and pressing forces of max. 6,800 N.

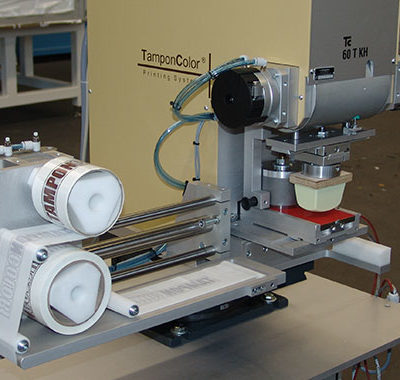

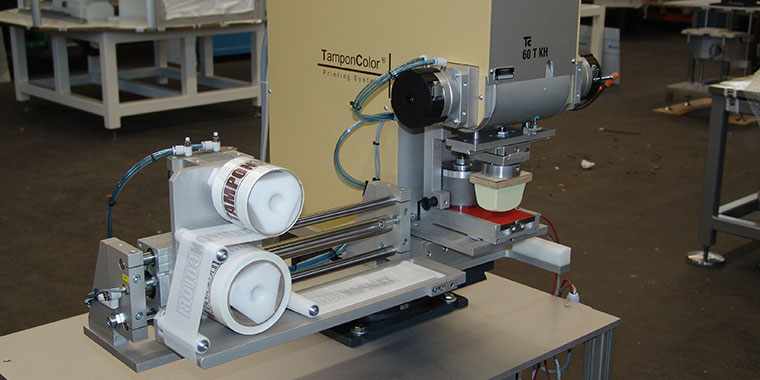

TC 60 T-KH – Pad printing machine with tilting head

With PLC-controller

Our modularly constructed PLC-controlled electro-pneumatic pad printing machine is for single and multi-colour printing, equipped for integration into automations and for printed image sizes up to approx. 70 mm Ø.

  • pneumatically powered pad printing machine with adjustable movement and speed
  • pneumatically powered pad printing machine with tilting head, pivot angle adjustable by 90°
  • pneumatic pad printing machine
  • suitable for long print images up to approx. 100×600 mm
  • affordable operation thanks to small ink cup diameter in relation to long print image
  • reduced cliché costs
  • printing possible below level
  • pressing force up to 500 N, other types on request
  • pressing force from 500 N, other types on request
  • pressing force 1,060 N at 6 bar
  • max. no. of cycles approx. 2,500/h
  • max. no. of cycles approx. 1,500/h
  • max. no. of cycles approx. 2,000/h
  • cliché width: max. 250 mm
  • cliché width: up to 600 mm
  • cliché width: max. 650 mm
  • cliché size: 250×120 mm
  • open or closed ink cup systems
  • closed ink system (ink cup)
  • ink cup size Ø 100 mm (closed cup system)
  • TAMPONCOLOR movement for smooth operation, good ink transfer
  • touch panel to adjust printing parameters and to change printing modes
  • operating modes: jog mode/colour mixing, single cycle, automatic, dual and multi-colour printing
  • operating modes: jog mode/colour mixing, single cycle, automatic
  • operating modes: jog mode/colour mixing, single cycle, single and double print
  • operation by hand and foot, equipped for automation
  • operating panel: Siemens PLC, programmable
  • optional: fully automated pad cleaning with freely selectable cleaning cycles
  • optional: sliding clichés and coding bars for changing print images
  • optional: heated ink tray with temperature regulation for use with thermoplastic inks
  • optional: can be upgraded as semi-automatic and fully automatic print station with feeds, handling and interlinkage
